SLJ Aluminum Alloy Clutch Valve Actuator

SLJ Aluminum Alloy Clutch Valve Actuator

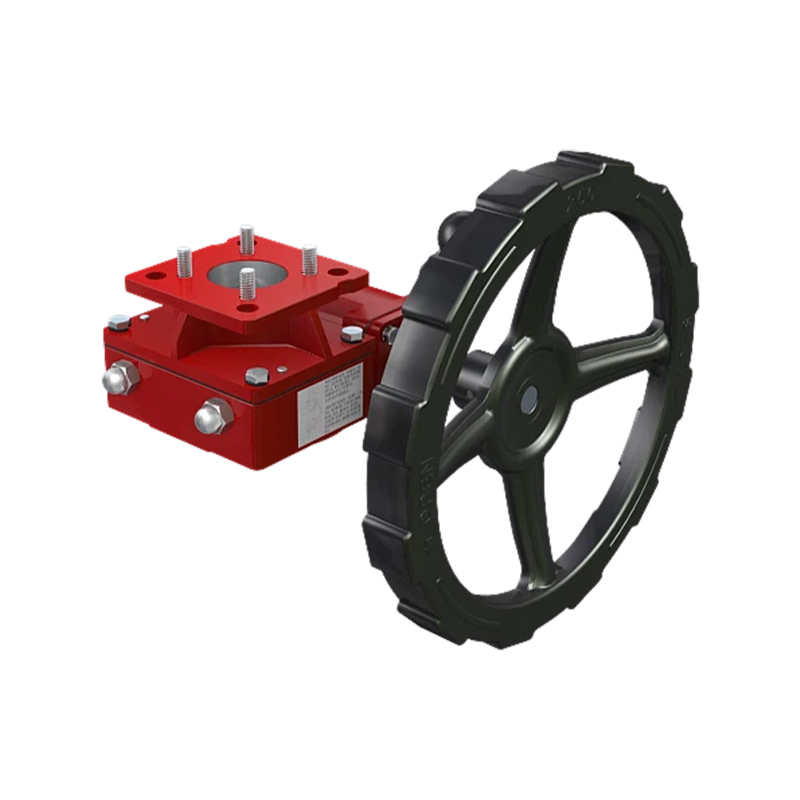

SLJ26/SLJ38/SLJ54
The series consists of 8 models with speed ratios ranging from 26:1 to 54:1 and torques ranging from 300NM to 1200NM. The torque difference between each two adjacent models is small, which helps customers save a lot of costs when choosing a specific product.
The separation box is specially designed for pneumatic actuators for butterfly valves, ball valves and plug valves.
The device can be manually operated during installation and the system can be tested when the air source is not loaded.

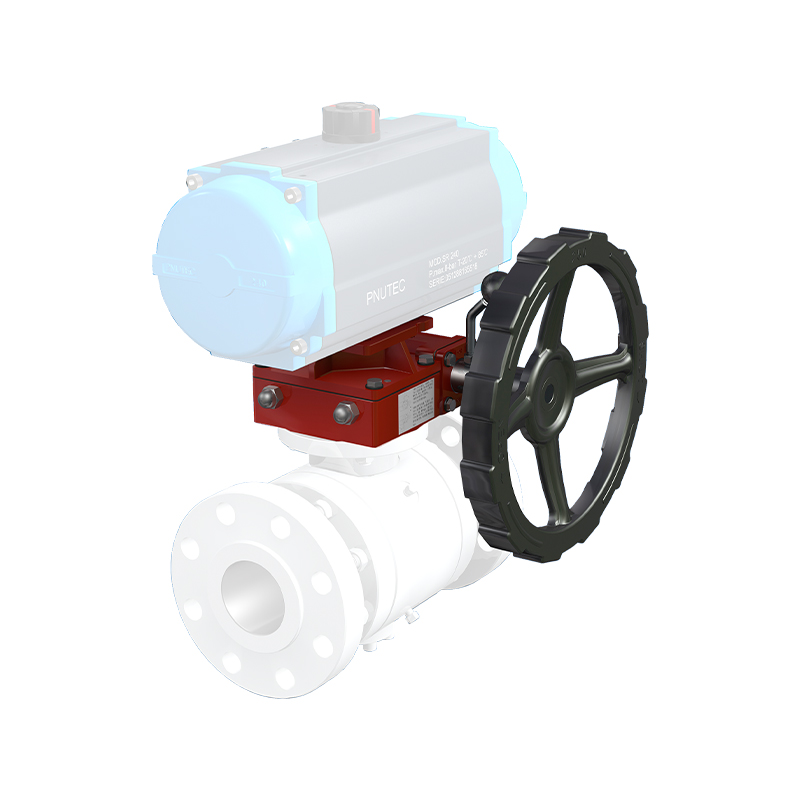

It can be directly installed on the most popular rack-type pneumatic actuators on the market.

Consult

Features
Technical Indicators
Overall Dimension

Installation and operation instructions
Connect the bottom surface of the reducer to the valve and the bracket surface to the cylinder. Then slide the valve shaft into the inner hole on the gas cylinder until the end of the valve shaft fits well with the square hole of the gas cylinder.
When the lever is turned (180° outward) to engage the worm, tooth collision may occur. In this case, you need to turn the handwheel to a certain angle so that they can engage with each other.
It is not allowed to drive the device by pneumatic and manual means at the same time.
Product Features
● Aluminum die-cast alloy
● Fully stamped handwheel (200-350)
● IP65 protection grade
● Input shaft is nickel-plated, more corrosion-resistant
● Ductile iron worm wheel
● NBR sealing material
● Suitable for working conditions of -20℃~120℃
Customization
● P68 protection grade
● Aluminum bronze worm wheel
● Stainless steel input shaft
● Suitable for high temperature below 320℃
● Suitable for low temperature below -40℃
● Marine use

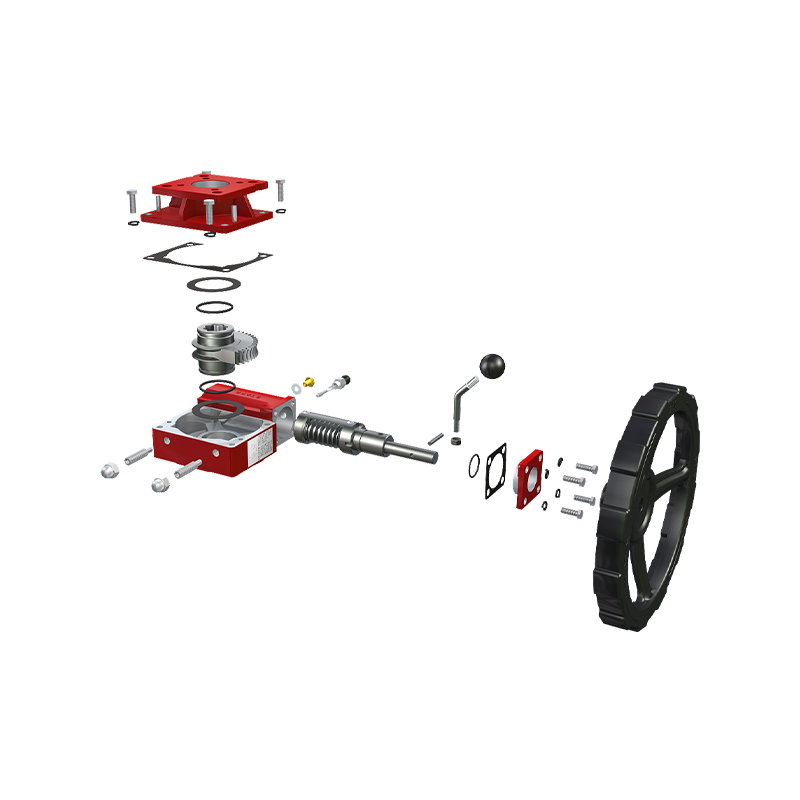

Main parts material Part name Material Large cover YL113 Housing YL113 Turbine QT500-7/ Bronze Bracket YL113 Handwheel Ductile iron Main Technical Parameter Model ratio Rating input(Nm) Rating output(Nm) Efficiency(%) Hand-wheel SLJ26 26:1 50 300 23 Φ200 SLJ38 38:1 65 550 23 Φ200 70 620 Φ250 80 700 Φ300 SLJ54 54:1 75 1000 25 Φ250 90 1200 Φ300

Part name	Material
Large cover	YL113
Housing	YL113
Turbine	QT500-7/ Bronze
Bracket	YL113
Handwheel	Ductile iron

Model	ratio	Rating input(Nm)	Rating output(Nm)	Efficiency(%)	Hand-wheel
SLJ26	26:1	50	300	23	Φ200
SLJ38	38:1	65	550	23	Φ200
		70	620		Φ250
		80	700		Φ300
SLJ54	54:1	75	1000	25	Φ250
SLJ54	54:1	90	1200	25	Φ300
