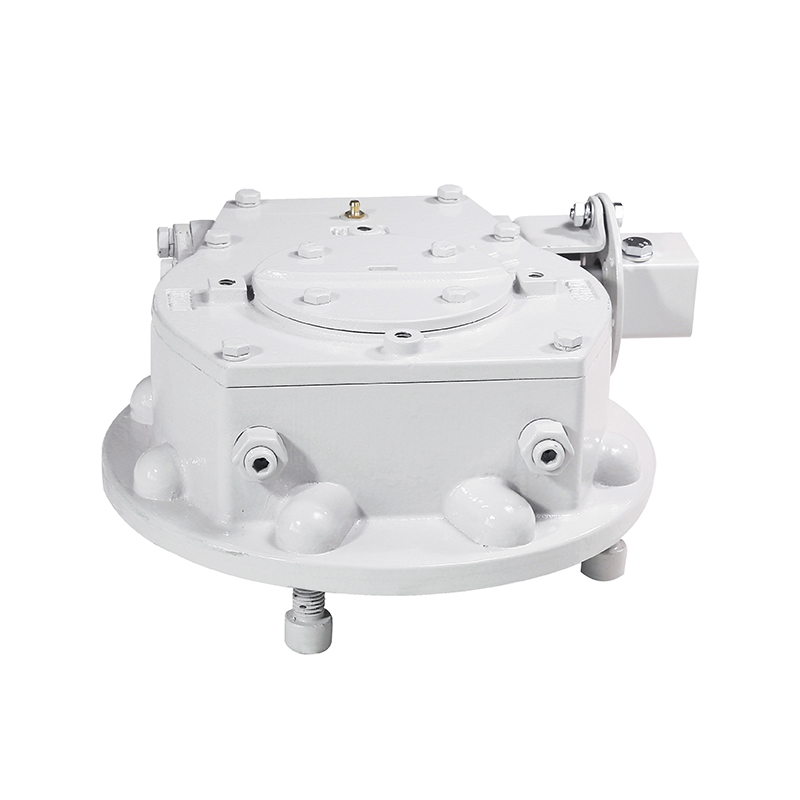

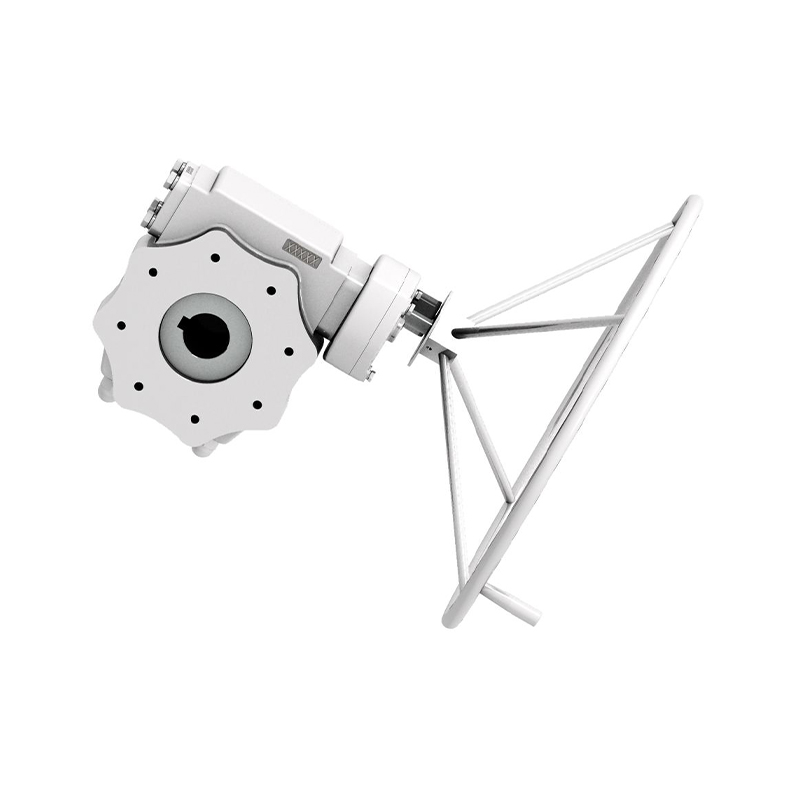

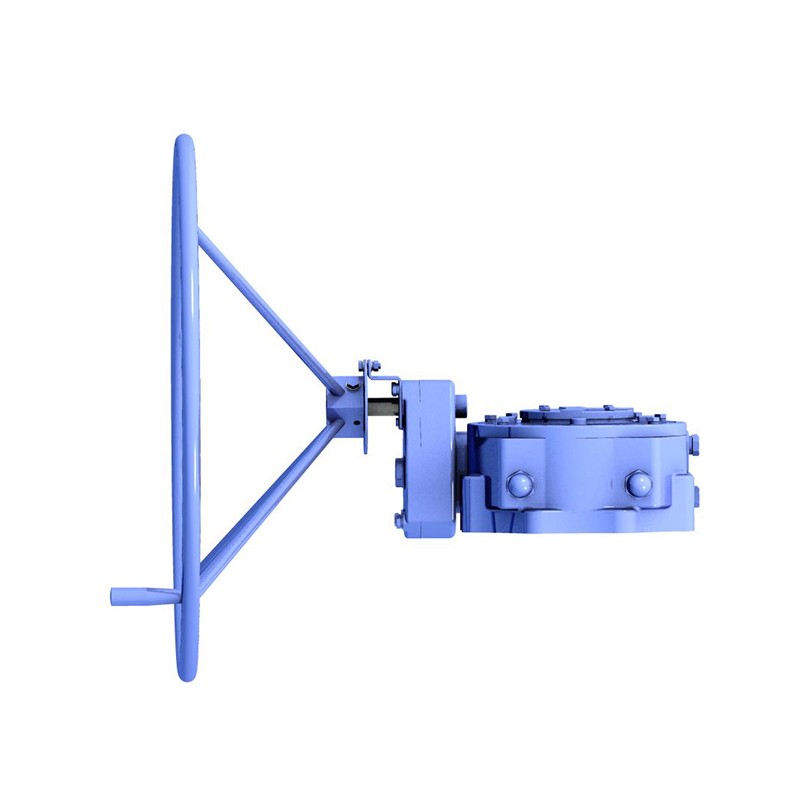

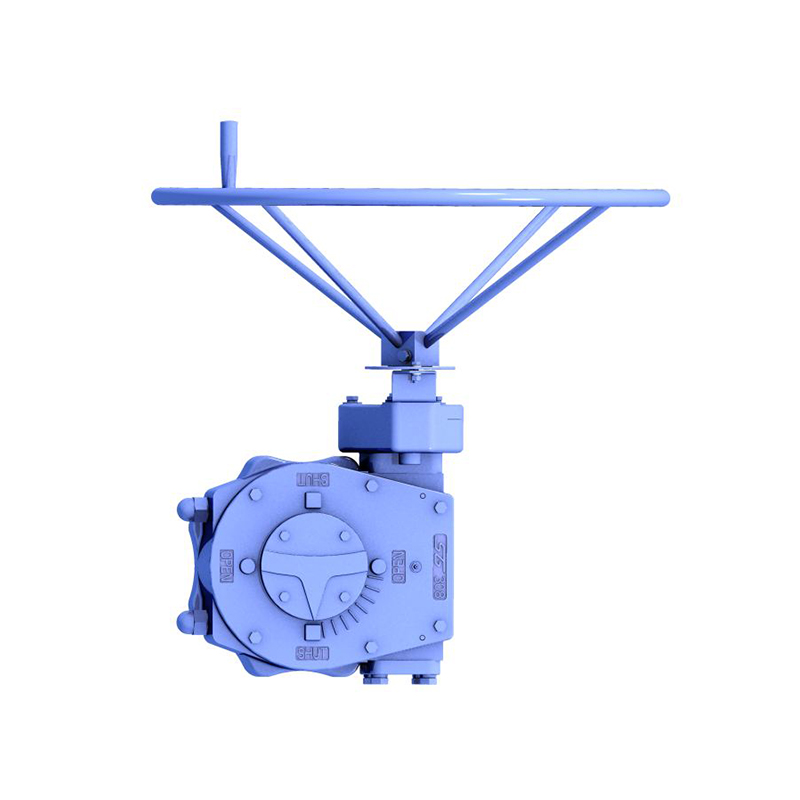

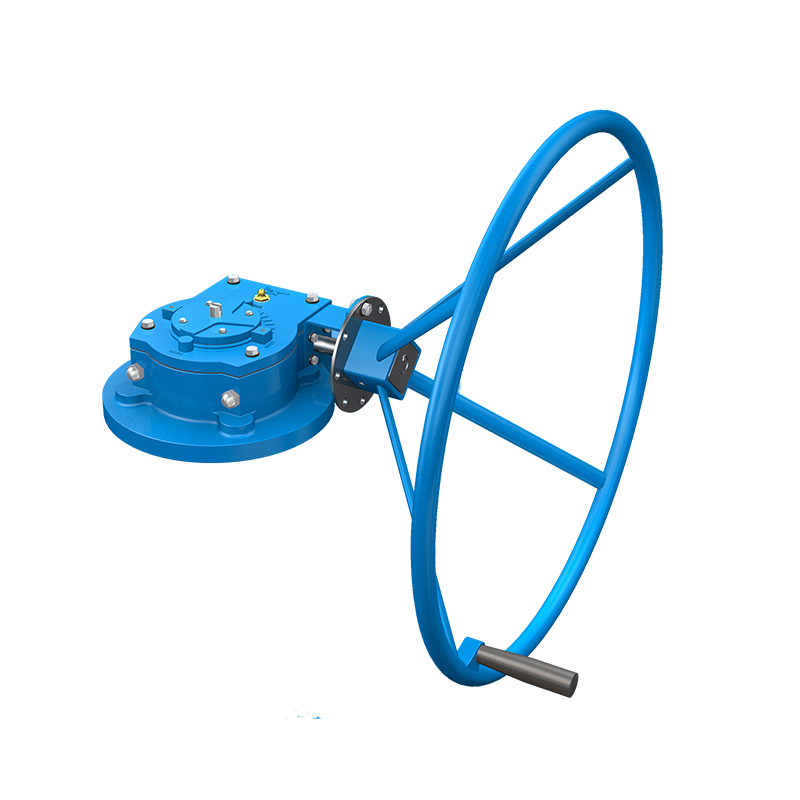

S008 Cast Iron Gearbox

S007/S008/S108/S158/S208/S218/S238/S308/S358/S408/S448/S508/S608/S708/S808
The series consists of 14 models with gear ratios ranging from 42:1 to 3525:1 and torques ranging from 720NM to 150000NM.
- Quarter-turn gearboxes are designed for manual installation, maintenance and operation of valves in pipelines (e.g. butterfly valves/ball valves/plug valves).

Consult

Features
Technical Indicators
Overall Dimension

Installation and operating instructions
Connect the lower flange of the gearbox to the upper flange of the valve and slide the valve shaft into the hole on the worm gear. Tighten the flange bolts. Turn the handwheel clockwise to close the valve and counterclockwise to open the valve. A position indicator and position mark are installed on the upper side of the gear operating mechanism, and the position of the switch can be directly observed through the position indicator. The gear operating mechanism is also equipped with a mechanical limit screw for adjustment and limit at the switch limit position.
Product Features
Cast iron housing (optional ductile iron)
Protective steel input shaft (optional stainless steel)
15 models up to 150000 Nm
NBR sealing material
Suitable for working conditions from -20℃ to 120℃
Stroke: 0 - 90° (±5° adjustable)
Designed with locking mechanism
Customization
Limit switch
High temperature to +200℃
IP68 protection grade
Aluminum bronze worm wheel
Low temperature to -46℃
Interlock safety system
Oxygen and food grade grease
Main parts list Part name Material Customization handwheel Welded handwheel gearbox housing Cast iron Ductile iron large cover Cast iron Ductile iron input shaft Carbon steel worm Carbon steel turbine Ductile iron indicator Ductile iron Ductile iron Main parameter table model Speed Ratio Rated input(Nm) Rated output (Nm) efficiency(%) S007 42:1 80 720 23 S008 50:1 110 1200 21 S108 72:1 120 2000 23.5 S158 70:1 150 2500 23 S208 68:1 220 3200 22 S218 78:1 206 4475 27.8 S238 175:1 170 6250 23 S308 275:1 150 9800 25 S358 532:1 170 18000 23 S408 700:1 190 32000 25 S448 1233:1 165 42000 23 S508 1254:1 190 60000 25 S608 1855:1 200 80000 23 S708 2292:1 200 100000 23 S808 3525:1 186 150000 23

Part name	Material	Customization
handwheel	Welded handwheel
gearbox housing	Cast iron	Ductile iron
large cover	Cast iron	Ductile iron
input shaft	Carbon steel
worm	Carbon steel
turbine	Ductile iron
indicator	Ductile iron	Ductile iron

model	Speed Ratio	Rated input(Nm)	Rated output (Nm)	efficiency(%)
S007	42:1	80	720	23
S008	50:1	110	1200	21
S108	72:1	120	2000	23.5
S158	70:1	150	2500	23
S208	68:1	220	3200	22
S218	78:1	206	4475	27.8
S238	175:1	170	6250	23
S308	275:1	150	9800	25
S358	532:1	170	18000	23
S408	700:1	190	32000	25
S448	1233:1	165	42000	23
S508	1254:1	190	60000	25
S608	1855:1	200	80000	23
S708	2292:1	200	100000	23
S808	3525:1	186	150000	23
